UV lamp drivers - design overview

Efficient. Safe. A perfect fit.

Uniform and stable radiation is critical for effective UV-C applications. Our ballasts are precisely matched to each UV-C lamp for reliable ignition, consistent output and maximum lamp life.

Individual solutions instead of standardized devices

ZED UV lamp drivers are available in different shapes and sizes, depending on the power, functionality and number of lamps to be operated. This gives you the flexibility to meet even the most complex requirements.

Initial orientation made easy

Since a complete presentation of all combinations of UV lamp drivers and corresponding UV-C lamps would go beyond the scope of this website, you will find here an overview of our most important families of equipment - as an introduction and for initial orientation.

Our lamp drivers are available in different form factors, device families or ballast designs, depending on the wattage, functionality and number of lamps to be operated.

  • The family name indicates the design (e.g. E2x80RS) suitable for lamps in the specified wattage range.

  • The units are each optimized for operation with the desired lamp(s) (e.g. GHO36T5) and marked with the common ZED ballast names (here: EVG2x65-80W/880mA).

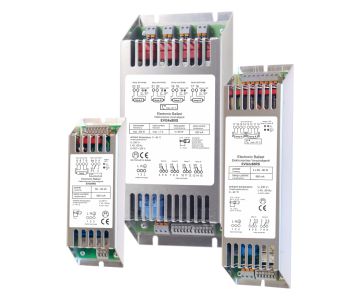

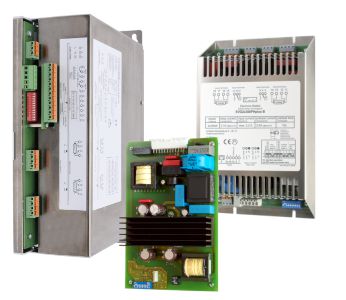

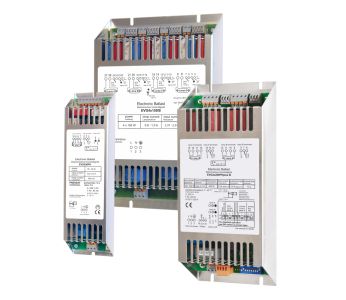

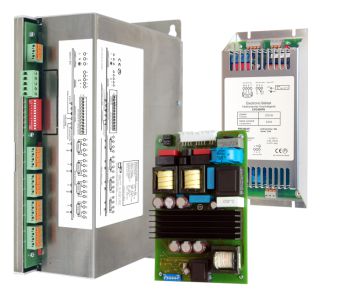

You can access our ballast designs grouped by power range directly via the selection menu or the illustrations above.

Scrolling down you will find a brief characterization of the ballasts in terms of lamp type (2pin, 4pin), functionality (e.g. standard, preheat, controllable) and power range. From here you can access further details and a sample selection of suitable common lamps.

You can use the filters on the left to further narrow your search results.
(Ballasts for other voltage ranges are available upon request).

Have a question? Contact us today!
Work with us to find the perfect solution for your UV application.

UV lamp driver
for 4pin UVC lamps,
lamp power 40...90W

UV lamp driver
for 2x 4pin UVC lamps,
lamp power 40...90W

UV lamp driver
for 2pin UVC lamps
power 40...90W

UV lamp driver
for 2x 2pin UVC lamps,
lamp power 40...90W

UV lamp driver
for 3x 2pin UVC lamps,
lamp power 40...90W

UV lamp driver
for 4x 2pin UVC lamps,
lamp power 40...90W

UV lamp driver
for 4 pin UVC lamps,
lamp power 5...50W,
supply voltage 24V DC,
preheat start for more
frequent switching

UV lamp driver
for 4 pin UVC lamps,
lamp power 5...24W

UV lamp driver
for 4 pin UVC lamps,
lamp power 5...17W
supply voltage 24V DC

UV lamp driver
for 2 pin UVC lamps,
lamp power 5...24W

UV lamp driver
for 2 pin UVC lamps,
lamp power 5...17W
supply voltage 24V DC

UV lamp driver
for 2x 4pin UVC lamps,
lamp power 40...160W,
PLC via RS485 Modbus

UV lamp driver
for 4pin UVC lamps,
lamp power 30...180W,
preheat start for more
frequent switching

UV lamp driver
for 4pin UVC lamps,
lamp power 30...180W

UV lamp driver
for 2x 4pin UVC lamps,
lamp power 30...180W,
preheat start for more
frequent switching

UV lamp driver
for 2x 4pin UVC lamps,
lamp power 30...180W

UV lamp driver
for 2pin UVC lamps,
lamp power 30...180W

UV lamp driver
for 2x 2pin UVC lamps,
lamp power 30...180W

standard ballasts for four 2-pin UV-lamps, lamp power up to 160W

ballast with enhanced operation features for two 4-pin UV-lamps, lamp power 40...200W

UV ballast with parameter adjustment and remote control for 4-pin UV-lamps, lamp power up to 400W

ballast with enhanced operation features for two 4-pin UV-lamps, lamp power up to 350W

UV ballast with parameter adjustment and remote control for two 4-pin UV-lamps, lamp power up to 350W

ballast with parameter adjustment and remote control for three 4-pin UV-lamps, lamp power 3x up to 325W

UV ballasts for 4-pin UV-lamps with preheat, lamp power up to 400W

ballast with parameter adjustment and remote control for four 4-pin UV-lamps, lamp power up to 325W

UV ballasts with enhanced operation features for 4-pin UV-lamps, lamp power up to 400W

UV ballast with parameter adjustment and remote control for two 4-pin UV-lamps, lamp power up to 350W

ballast with parameter adjustment and remote control for three 4-pin UV-lamps, lamp power up to 325W

ballast with parameter adjustment and remote control for 4-pin UV-lamps, lamp power up to 400W

ballast with parameter adjustment and remote control for 4-pin UV-lamps, lamp power up to 325W

ballast with parameter adjustment and remote control for 4-pin UV-lamps, lamp power up to 1200W

ballast with parameter adjustment and remote control for two 4-pin UV-lamps, lamp power up to 600W

ballast with parameter adjustment and remote control for 4-pin UV-lamps, lamp power up to 600W

ballast with parameter adjustment and remote control for 4-pin UV-lamps, lamp power up to 1200W

ballast with parameter adjustment and remote control for two 4-pin UV-lamps, lamp power up to 600W

ballast with parameter adjustment and remote control for 4-pin UV-lamps, lamp power up to 600W

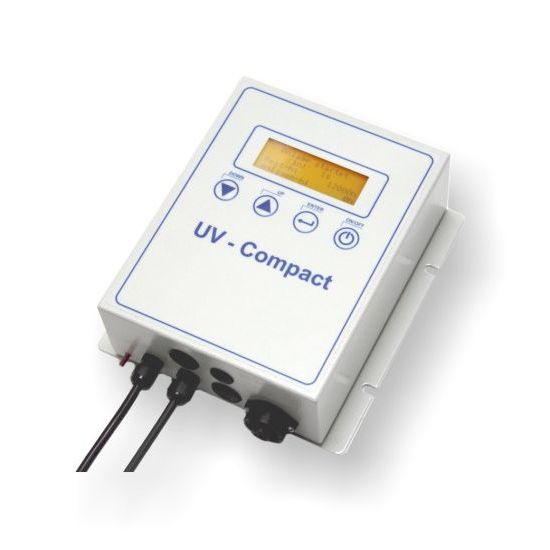

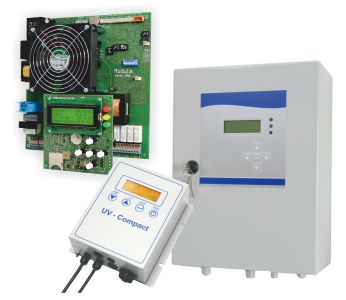

UV-Compact D = electronic ballast + hour counter + UV monitor

operation units for UV-C lamps
