Ballast family - UV ballasts for operating 4 UVC lamps with 2 pin connector
-
Lamp power: 40...90 W
-
Lamp current: up to 1.2 A
-
Dimensions: 248 x 105 x 59 mm (9.76 x 4.13 x 2.32 inch)
-
No. of Lamps: 4
-
Design examples:
Ballast for GHO36T5: EVG4x65-80W/880mA-IS
Ballast for G64T5: EVG4x50-70W/425mA-IS
Scroll down for more UV lamp types.
Contact us to get the right driver for your lamp!
Features
- instant start ballasts for 2-pin UV-lamps

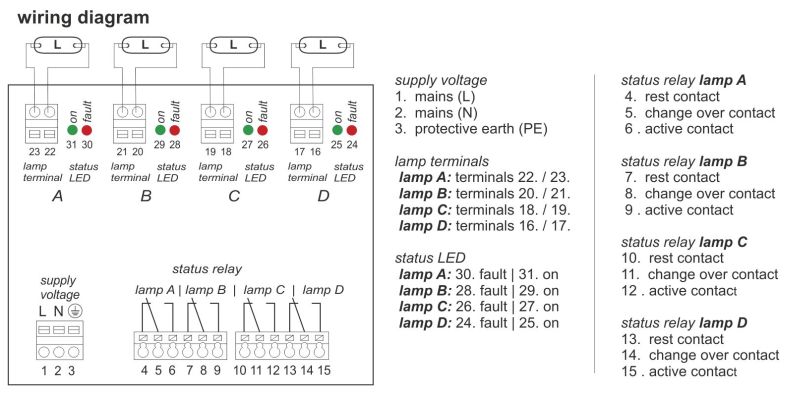

- less wiring - only 2 wires per lamp
- fourfold device - powers four lamps, independent lamp operation even if one lamp defective or disconnected

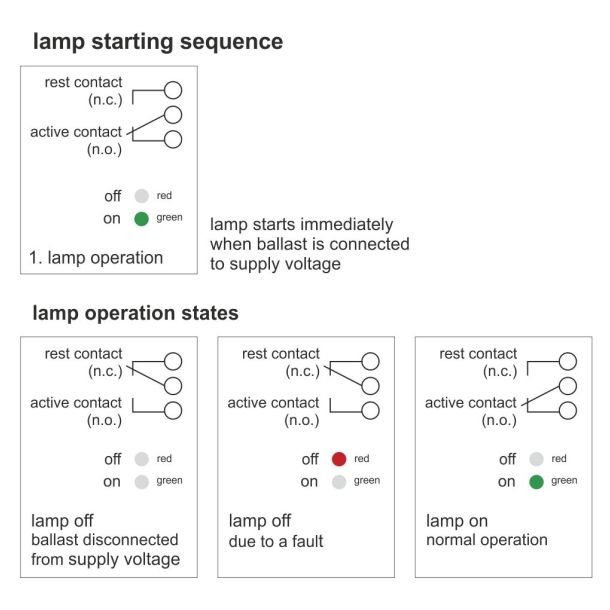

- lamp and ballast status indication - green and red LEDs - potential free relay contacts

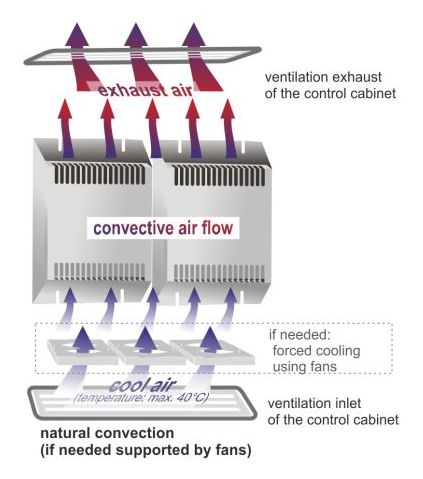

- metal housing, designed for optimal thermal flow

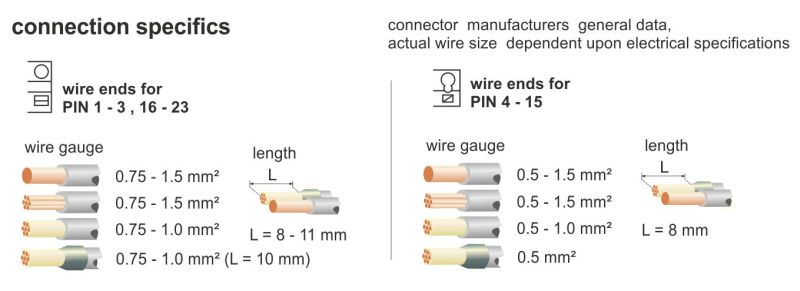

- push-in contacts for quick installation
- standard operation - easy system start-up "plug and play" - no DIP-switch / no RS485 interface - no adjustable operation parameters - no remote operation control
- high efficiency
- active power factor correction (PFC) low THD according to EN 61000
Technical Specification
supply voltage: | 230V AC ± 10% / 45-65Hz (115V AC types on request) |
---|---|
efficiency: | >90% |

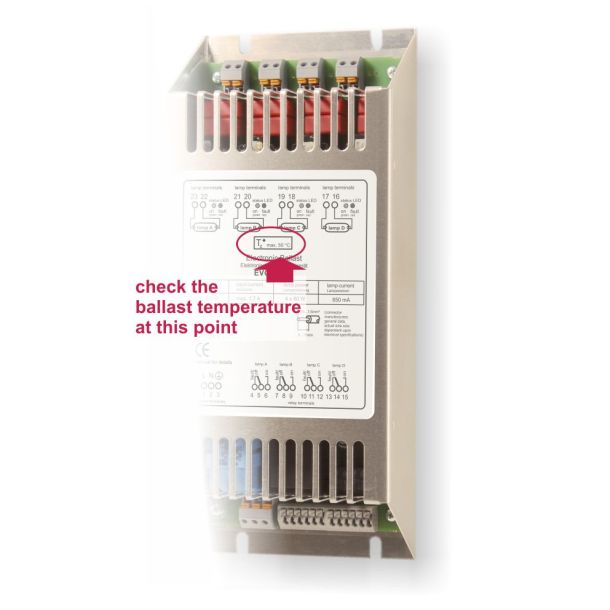

operation temperature: | max. 50°C (122°F) at TC-point |
ambient temperature: | 0 - 40°C (32 - 104°F) |
IP code: | IP20 |

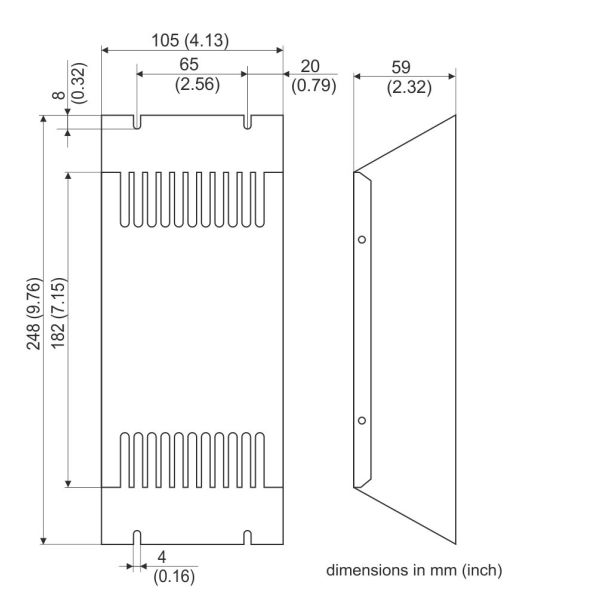

dimensions (LxWxD): | 248 x 105 x 59 mm (9.76 x 4.13 x 2.32 inch) |
UV lamp types
- G36T5
- G64T5
- GHO36T5
- GPH436T5HO(600mA)
- GPH436T5HO(800mA)
- GPH793T5
- GPH846T5
- GPH846T5HO(600mA)
- GPH846T5HO(800mA)
- GPH893T5HO(600mA)
- GPH893T5HO(800mA)
- GPHA357T5L
- GPHA357T6L
- LTC40T5
- LTC64T5
- LTC75T8
- LTC80T5
- TUV 36T5 HE
- TUV 36T5 HO
- TUV 64T5 HE
(ballasts for other UV lamp types available on request)
