all-in-one complete system
lamp power: 30...200 W
lamp current: up to 2,1 A
Features

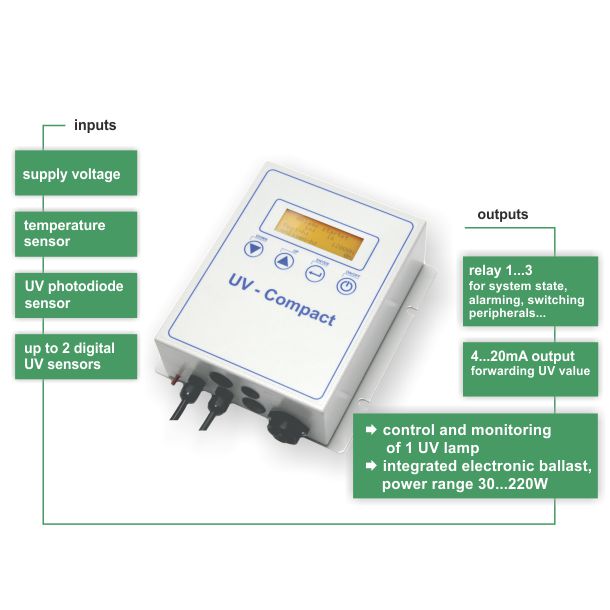

- All-in-one compact system consisting of:
- electronic ballasts
- hour counter
- control unit
- optional: UV monitor, temperature monitor, more additional functions - IP 54 housing
- standard version EVG-RS for 4-pin UV-lamp without preheating,
EVG-PH for 4-pin UV-lamp with preheating or EVG-IS for 2-pin UV-lamp - status indication (lamp, lamp error, UV-monitor, temperature monitoring )
- multicolor LCD with backlights:
green = OK, yellow = warning, red = alarm
- potential free relay contacts - full prepared - ready to use
- high efficiency
- active power factor correction (PFC)
low THD according to EN 61000
Technical Specification
| supply voltage: | 230V AC ± 10% /45-65Hz (115V AC on request) |
|---|---|
| efficiency: | >90% |
| operation temperature: | internal temperature monitor, overheating protection |
| ambient temperature: | 0 - 40°C (32 - 104°F) |
| IP code: | IP54 (if used with appropriate connectors) |

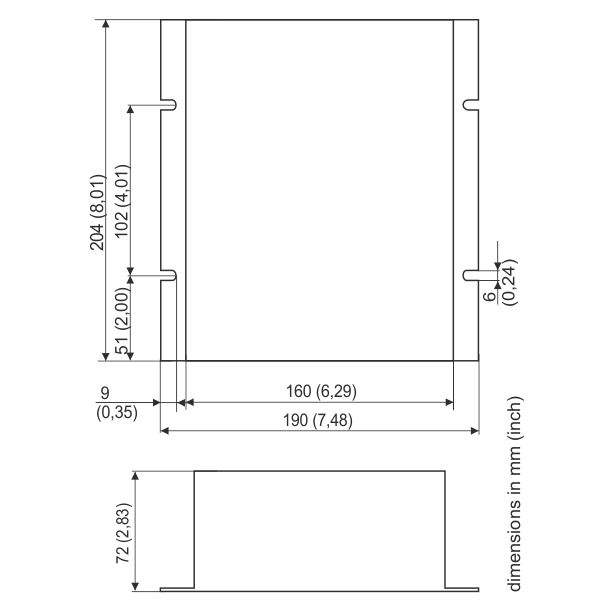

| dimensions (LxWxD): | 204 x 190 x 72 mm (8.01 x 7.48 x 2.83 inch) |
UV lamp types
- G36T5
- G64T5
- GHO36T5
- GHO64T5
- GIA120
- GIA843T5LCA
- GPH436T5HO(600mA)
- GPH436T5HO(800mA)
- GPH793T5
- GPH846T5
- GPH846T5HO(600mA)
- GPH846T5HO(800mA)
- GPH893T5HO(600mA)
- GPH893T5HO(800mA)
- GPHA357T5L
- GPHA357T6L
- GPHA843T5L
- GPHA843T6L
- GPHA1000T5L
- GPHA1000T6L
- LTC40T5
- LTC64T5
- LTC75T8
- LTC80T5
- LTC115T12
- NNI 60/35 XL
- NNI 80/36 U
- NNI 120/84
- NIQ 120/84
- NNI 125/84 XL
- NIQ 125/84 XL
- NNI 200/107
- NIQ 200/107
- NNI 201/107 XL
- NIQ 201/107 XL
- TUV 115W (R) VHO (T12)
- TUV 36T5 HE
- TUV 36T5 HO
- TUV 36W (T8)
- TUV 55W HO (T8)
- TUV 64T5 HE
- TUV 64T5 HO
- TUV 75W HO (T8)
- TUV 130W XPT
- TUV PL-L 36W/4P
- TUV PL-L 60W/4P HO
- TUV PL-L 95W/4P HO
- UNI120
(ballasts for other UV lamp types available on request)
ZED sensors
- see Integrated Solutions
