Ballast family - small sized UV ballasts for operating one UVC lamp with 4 pin connector
-
Lamp power: 5...17W
-
Lamp current: up to 425mA
-

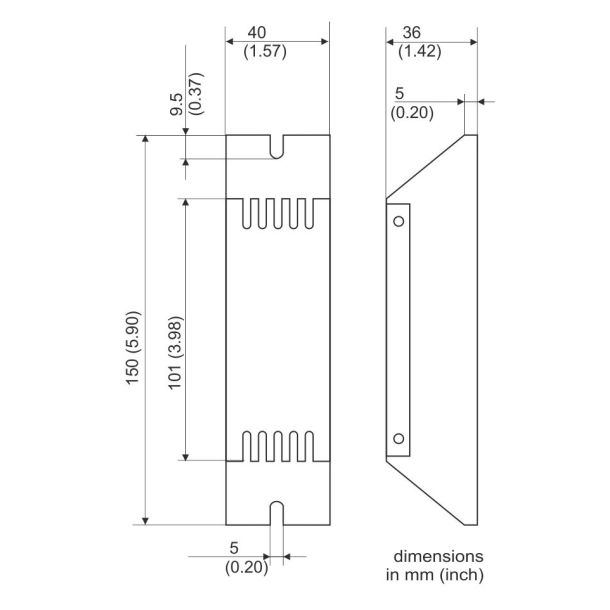

Dimensions: 150 x 40 x 36 mm (5.90 x 1.57 x 1.42 inch)
-
No. of Lamps: 1
-
Supply Voltage: 24V DC
-
Design examples:
Ballast for G10T5: EVG17W/425mA-4
Scroll down for more UV lamp types.
Contact us to get the right driver for your lamp!
Features
- rapid start ballasts for quick lamp start of 4-pin UV-lamps
- single device - powers one lamp
- small and space saving

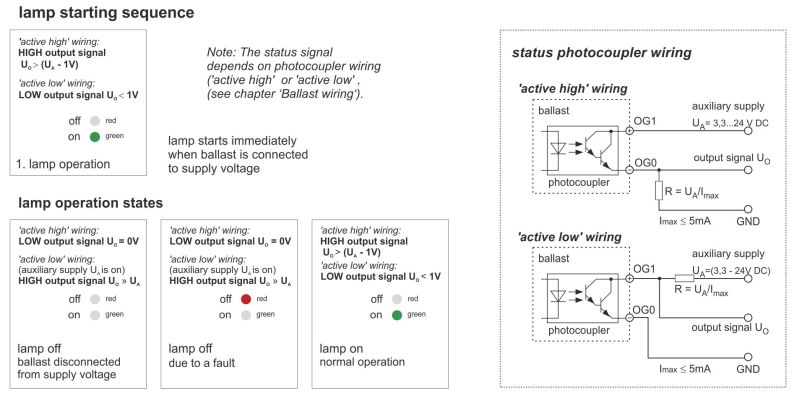

- lamp and ballast status indication - green and red LEDs - photocoupler

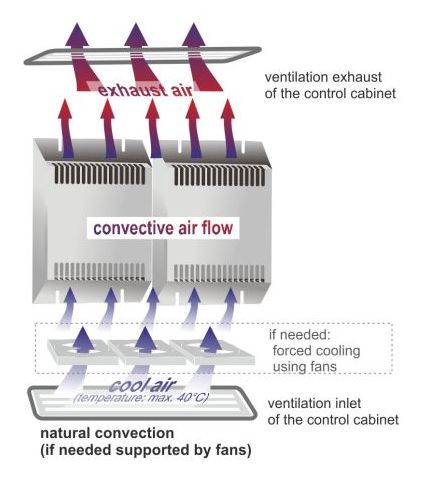

- metal housing, designed for optimal thermal flow

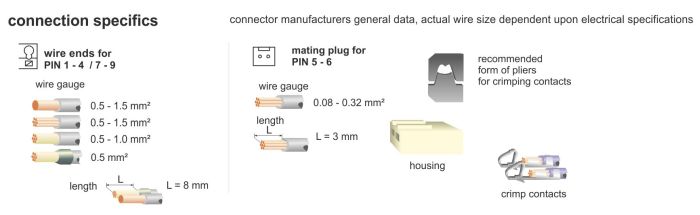

- push-in contacts for quick installation
- standard operation - easy system start-up "plug and play" - no DIP-switch / no RS485 interface - no adjustable operation parameters - no remote operation control
Technical Specification
| supply voltage: | 24V DC ± 10% |
|---|---|
| efficiency: | ~70% |

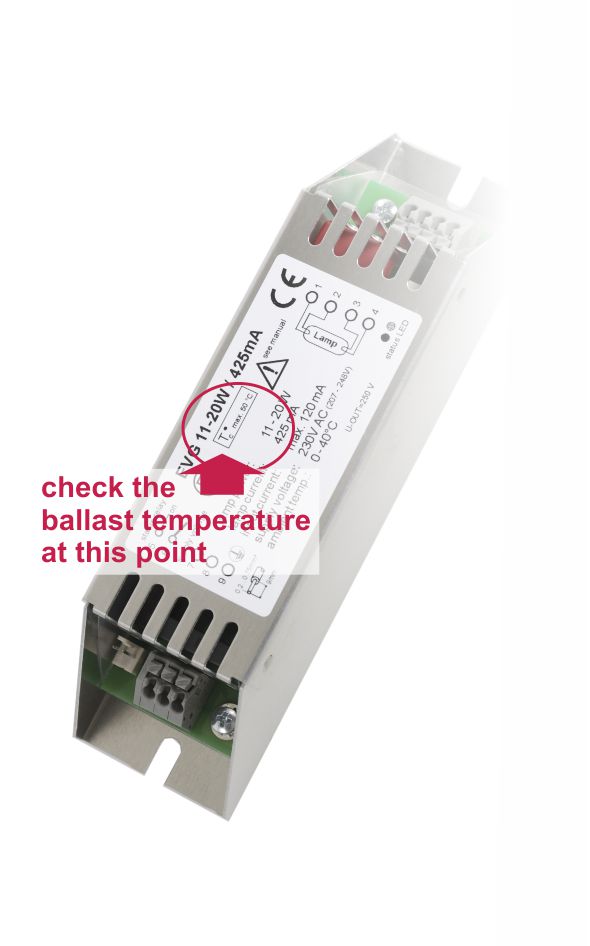

| operation temperature: | max. 50°C (122°F) at TC-point |
| ambient temperature: | 0 - 40°C (32 - 104°F) |
| IP code: | IP20 |
| dimensions (LxWxD): | 150 x 40 x 36 mm (5.90 x 1.57 x 1.42 inch) |
UV lamp types
- GPH212T5
- GPH287T5L
- GPH303T5L
- GPH357T5
- G10T5
- TUV 11W (T5)
- TUV 16W (T5)
ballasts for other UV lamp types available on request
