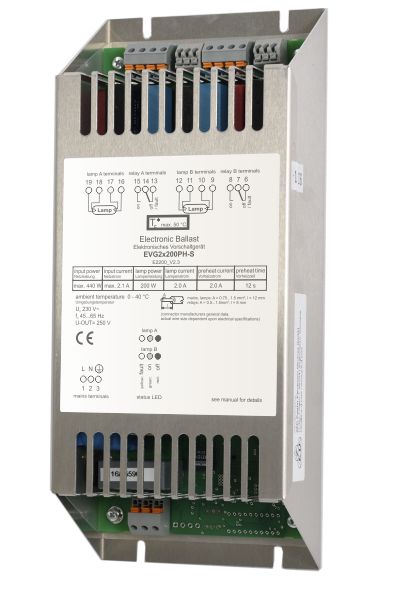

ballast with enhanced operation features for two 4-pin UV-lamps, lamp power 40...200W
lamp power: 40...200 W
lamp current: up to 2,1 A
Features
- preheat start ballasts for optimal lamp operation
- double device - powers two lamps, independent lamp operation even if one lamp is defective or disconnected

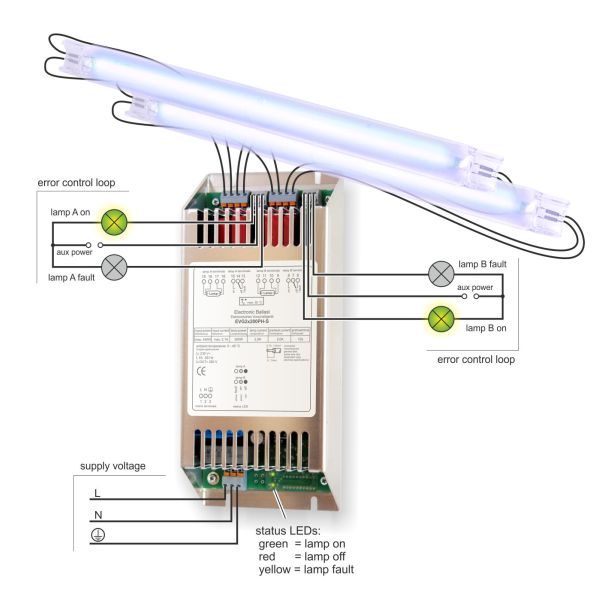

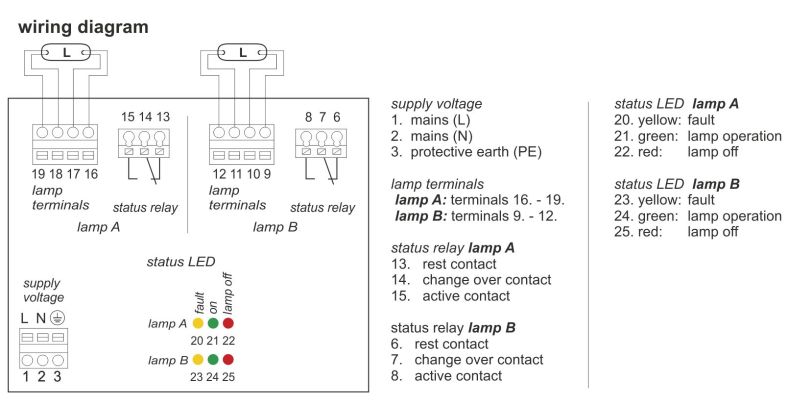

- lamp and ballast status indication
- green, red and yellow LEDs
- potential free relay contacts - up to 30 m lamp cable length possible
- enhanced protection
- power range control
- undervoltage protection
- overtemperature protection - standard operation
- easy system start-up "plug and play"
- no DIP-switch / no RS485 interface
- no adjustable operation parameters
- no remote operation control - metal housing, designed for optimal thermal flow

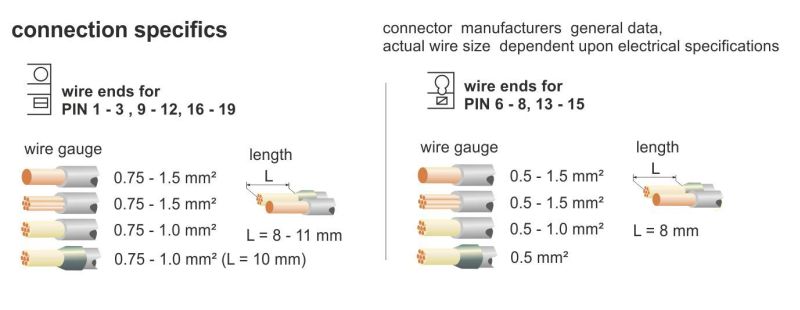

- push-in contacts for quick installation
- high efficiency
- active power factor correction (PFC)
low THD according to EN 61000
Technical Specification
| supply voltage: | 230V AC ± 10% /45-65Hz (115V AC types on request) |
|---|---|
| efficiency: | >90% |

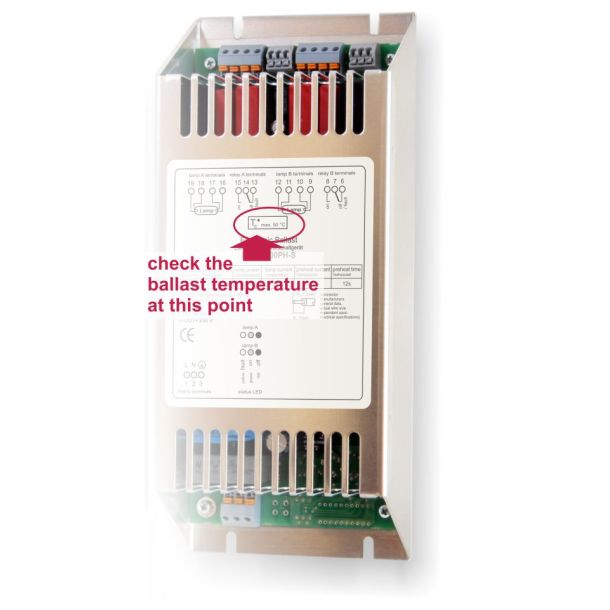

| operation temperature: | max. 50°C (122°F) at TC-point (ballasts are overtemperature protected) |
| ambient temperature: | 0 - 40°C (32 - 104°F) |
| IP code: | IP20 |

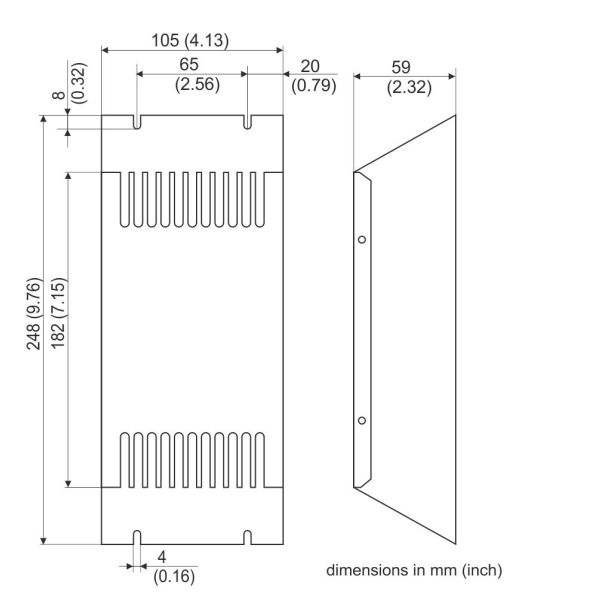

| dimensions (LxWxD): | 248 x 105 x 59 mm (9.76 x 4.13 x 2.32 inch) |
UV lamp types
- GHO64T5
- GIA120
- GIA200
- GIA843T5LCA
- GIA1554T5LCA
- GIA843T6LCA
- GPHA357T5L
- GPHA357T6L
- GPHA843T5L
- GPHA843T6L
- GPHA1000T5L
- GPHA1000T6L
- GPHA1554T5L*
- GPHHA357T6L
- GPHHA843T6L
- GPHHA1000T6L*
- LTC115T12
- NNI 60/35 XL
- NNI 80/36 U
- NNI 120/84
- NNI 125/84 XL
- NIL 125/84 XL
- NIQ 120/84
- NIQ 125/84 XL
- NNI 200/107
- NNI 201/107 XL
- NIQ 200/107
- NIQ 201/107 XL
- TUV 115W (R)
- TUV 64T5 HO
- TUV 130W XPT
- TUV 180W XPT
- UNI120
- UNI200
* forced ballast cooling required
(ballasts for other UV lamp types available on request)
