UV Low Pressure Lamps:
Performance Measurement - Water

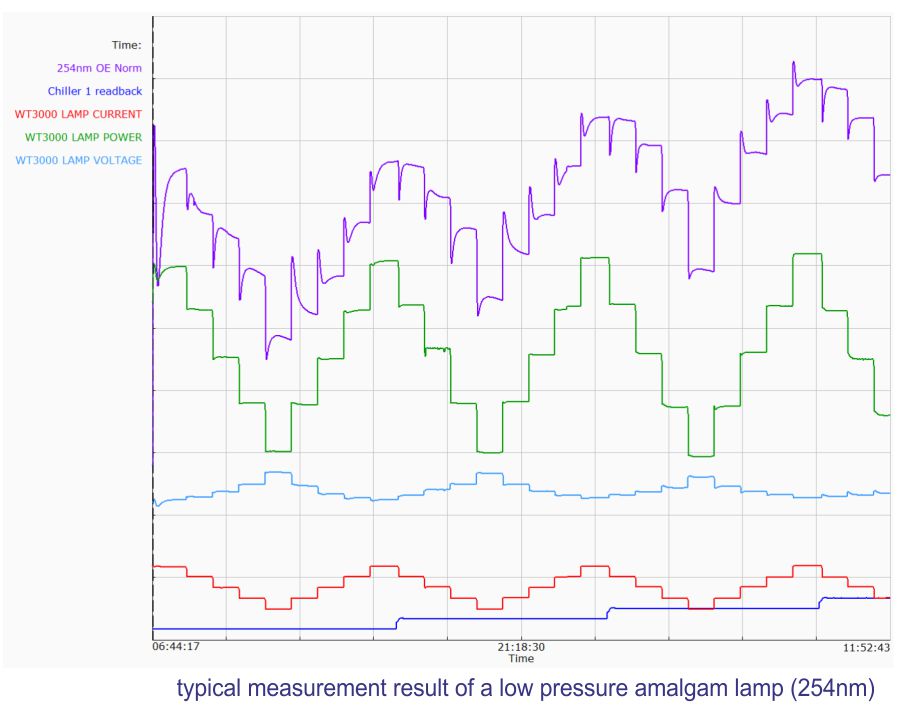

  • Measurement and visualization:
    - all relevant electrical lamp parameters
    - UV - Output at 254nm (in W/m²)
    - Datalogging (trend file, csv- / jpg- export)
  • Typical settings:
    - 5...30°C water temperature (step size 5°K)
    - 100...50% lamp current at each temperature step (step size 500mA, stabilization time 1h)

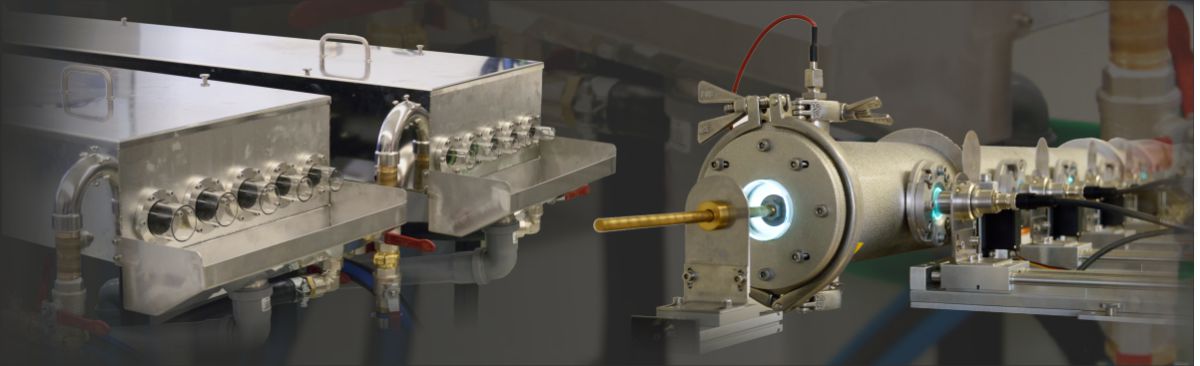

  • Setup "Multi Sensor/Single Sleeve":
    - set of UVC-Sensors lengthwise on the lamp
    - horizontal and vertical lamp orientation
  • - sleeve inner diameter: 22 / 26 / 40 / 45mm
  • Setup "Single Sensor/Multi Sleeve":
    - horizonal lamp orientation
    - sleeve inner diameter: 20...46mm
