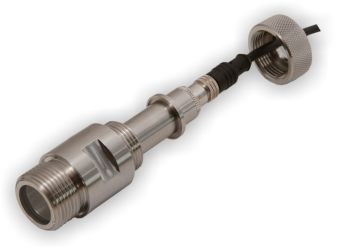

Sensor Mounting Adapter G1" for DVGW/ÖNORM compliant UV sensors
Features
- for mounting of DVGW/ÖNORM compliant UV-Sensors in certified UV systems
- according to DVGW/ÖNORM the sensor calibration must be checked annually using a standardized reference meter, for that means the facility sensor must be capable of being pulled out and replaced by the reference sensor
Technical Specification
| operation temperature: | 0 - 40°C (32 - 104°F) |
|---|---|
| max. pressure / IP code: | 10bar at quartz window / IP64 on terminal ends if connected to appropriate sensor cable |
| body material: | stainless steel 1.4404 |
| mounting: | pipe thread ISO228 G1", length: 20mm (0,79 inch) union nut M30x2 for sensor fixation |
| dimensions (LxWxD): | diameter: 38mm (1,49 inch) length: 65mm (2,56 inch) wrench size: 32mm (1,26 inch) |
