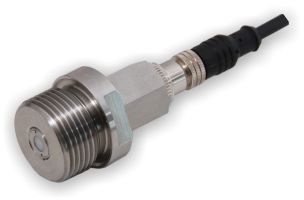

Sensor Mounting Adapter G1/4" to G1"
Features
- for mounting UV-Sensors with G1/4" threads in reactorwalls with G1" threads
- Reactors used for certified UV systems according to DVGW/ÖNORM are prepared for mounting the G1" measurement window MF001.
- Using the measurement window adapter MF001-A these reactors can be used on units where no compliance is demanded with the less expensive G1/4" UV sensors.
Technical Specification
| body material: | stainless steel 1.4404 |
|---|---|
| mounting: | pipe thread outside ISO228 G1", inside ISO228 G1/4" length: 20mm (0.79 inch) |
| dimensions (LxWxD): | diameter: 38mm (1.49 inch) length: 30.5mm (1.2 inch) wrench size: 32mm (1.26 inch) |
ZED UV Sensors
all types with G1/4" thread
- SiC001
- SiCT001
- D-SiC131 (-I/-U2/-U10)
- D-SiC131
- D-SiCT141 (-I/-U2/-U10)
- D-SiCT141
