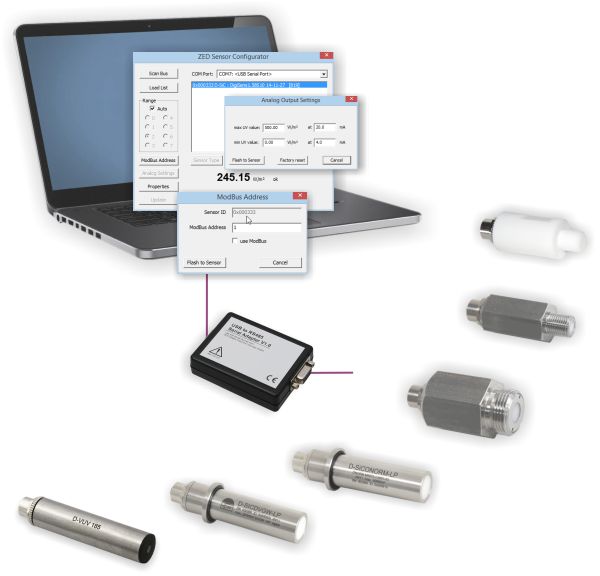

The ZED Sensor Configurator is a simple PC application bundled with a special ZED USB-to-RS485 adapter to connect the sensor to a Windows-PC.

Features

  • UV-C Reference Radiometer
    - use with ZED Reference Sensors D-SiCONORM-LP-REF for checking DVGW and ÖNORM compliant plant sensors
  • 185nm measuring device
    - use with ZED Sensors D-VUV 185nm for checking ozone producing low pressure UV lamps
  • UV-C meter
    - use with ZED D-SiC UV sensors with RS485 interface
    - use with ZED D-SiC-I/U UV sensors with 4-20mA, 0,-2V or 0-10V singal output
    - use with ZED D-SiC-SLS UV side-looking sensors
  • Data Logger
    - Save measurement data to SD-Card (duration and intervall adjustable). The log files can be opened on the PC with a text editor or imported into spreadsheet program for analysis.
  • ZED Sensor Configuration Tool
    - set / change ModBus address of D-SiC UV sensors
    Digital ZED UV sensors may alternatively communicate via ModBus with customer specific control units. The changeover to ModBus - communication and the assignment of the ModBus address can be done using the ZED SmartMeter.
    - setting up analog output D-SiC-I/U sensors
    Digital ZED UV-C - sensors can also be supplied with an analog voltage or current interface. The required irradiance value for the particular UV facility can be assigned to the analog output value with the ZED SmartMeter. (e.g. 150W/m² ≙ 20mA)
    - optional: in-field recalibration of ZED D-SiC sensors

ZED Sensors

  • UV-C sensors - plant sensors:
  • with RS485 interface: D-SiC
  • with current/voltage signal: D-SiC-I/U
  • side-looking types: D-SiC-SLS
  • UV-C reference sensors: D-SiC-LP-REF
  • 185nm sensors: D-VUV 185nm

ZED Accessories

  • for VUV measurement: sensor fastener F01
