universal control unit for PHplus ballasts

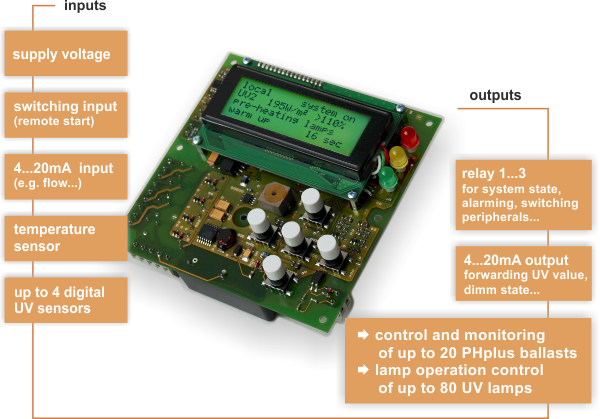

Features

  • out-of-the-box control unit
    for use as
  • master control
    for small UV applications with up to 20 ZED PHplus-EVG (= up to 80 lamps on using quad lamp ballasts)
  • subcontroller
    connecting up to 20 ZED PHplus ballasts and up to 4 D-SiCplus UV-sensors with a PLC
  • UV-C monitoring
    using up to 4 D-SiCplus UV-sensors
  • status indication:
    - multicolor LCD
    - green, red and yellow LEDs
  • status forwarding / remote operation:
    - remote start input
    - 4-20 mA signal input (e.g. flowmeter or dimming using analog PLC)
    - 4-20 mA signal output (e.g. UV or Dimm value forwarding to PLC)
    - 3 switching outputs (status indication or remote switching)

Technical Specification

suply voltage: 100...240V AC 50-60Hz (24V DC on request)
operation temperature: max. 45°C (113°F)
ambient temperature: 0-40°C (32-104°F)
IP code: IP00 (IP54 at front with optional front panel)
mounting: to be installed in a closed cabinet
dimensions (LxWxD): 130x130x50 mm (5,12x5,12x1,96 inch)
with optional front panel 200x200x50 mm (7,87x7,87x1,96 inch)
